Chimney Draft Analysis in Houston, TX
Forensic Chimney Draft Analysis — Houston, TX
Identify the Draft Failure That Survived Inspection, Cleaning, and Standard Diagnostic Testing
When a structurally sound chimney still pushes smoke back into your room, the answer is not another inspection. It is a quantifiable, instrument-based diagnostic that tests the chimney under the conditions that actually produce the failure.
When Every Standard Check Passes and the Problem Continues
A structurally sound chimney can still fail to draft — and standard inspection will not find the reason.

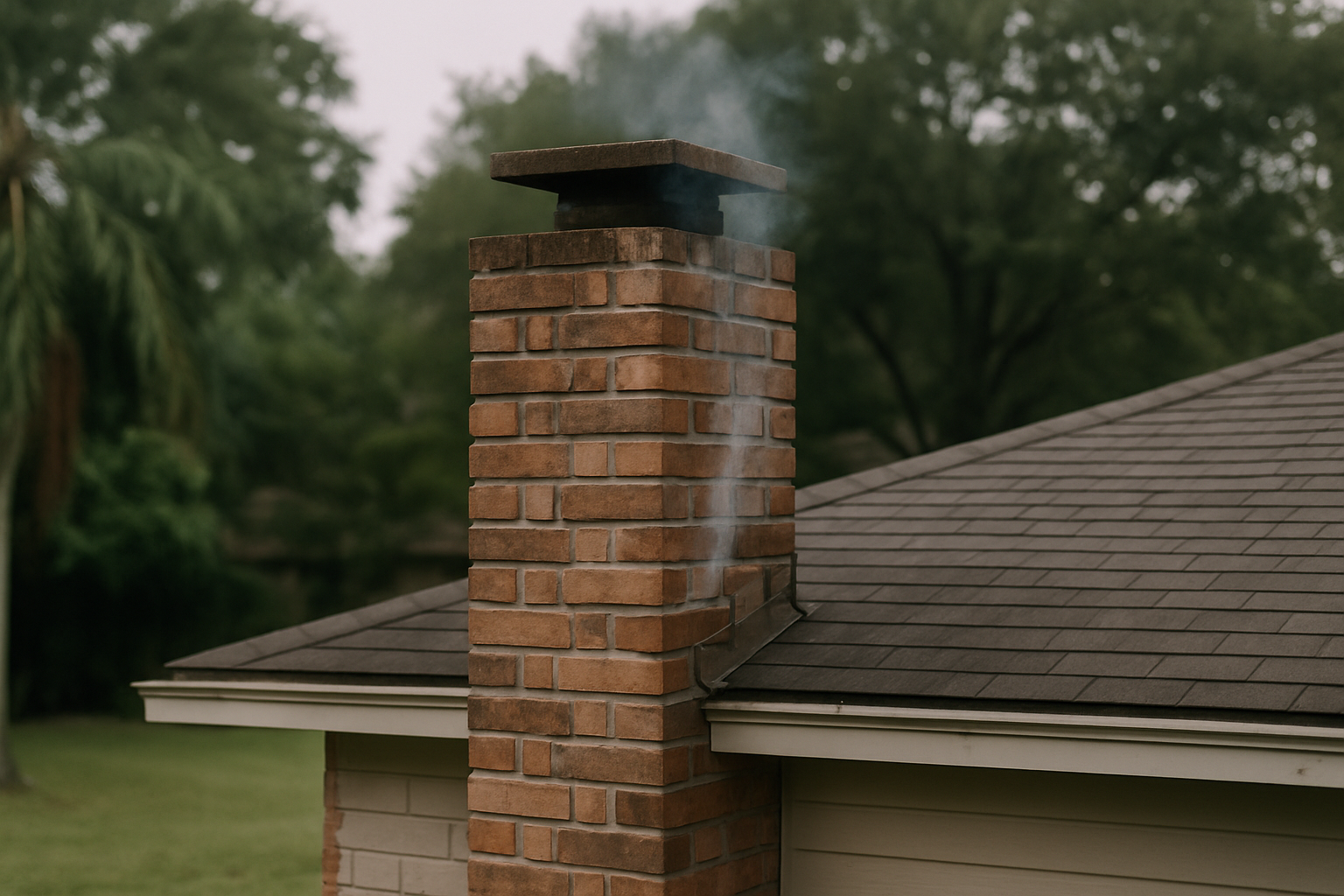

The flue is clean. The liner is intact. The cap is unobstructed and correctly sized. A licensed technician ran a visual inspection and found nothing wrong. Then you lit a fire, and smoke pushed back into the room — again.
This is not a failure of the chimney's structure. It is a failure of the building's pressure relationship with that chimney. Standard chimney inspection is designed to document physical condition. It is not designed to measure pressure differentials, test performance under competing mechanical loads, or identify what happens when three building systems operate simultaneously. Forensic chimney draft analysis — a protocol built around instrument-based, multi-condition testing — is the tool that fills that gap.
832 Home Service has conducted this type of investigation across the greater Houston area since 2010. A clean chimney that still smokes is not a mystery. It is a diagnostic problem with a quantifiable answer.
Why Houston's Post-2000 Construction Creates Unique Draft Conditions
Tight construction in Houston's suburban developments produces building pressure conditions that older homes and other climates simply do not have.
Houston's construction boom after 2000 produced homes in communities like Fulshear, Cinco Ranch, and Sienna Plantation that are built to significantly tighter standards than anything built before the mid-1990s. Spray foam insulation, vapor barriers, energy-efficient windows, and sealed building envelopes are standard features in these developments. That construction tightness is excellent for energy efficiency. It is genuinely problematic for chimney draft performance.
A chimney draft system operates on a straightforward pressure principle: the flue must maintain higher pressure than the interior of the home to pull combustion gases upward and out. In a loosely constructed older home, the building breathes. Makeup air — the replacement air a chimney needs to sustain a draft — enters through gaps around windows, doors, and penetrations. In a post-2000 Fulshear or Cinco Ranch home, those gaps are largely sealed. When the fireplace operates, especially alongside a multi-zone HVAC system, the building depressurizes. The chimney loses its competitive pressure advantage, and combustion gases follow the path of least resistance — back into the room.
This pressure interaction is Houston-specific in both its frequency and its intensity. Our subtropical climate means HVAC systems run almost year-round. They are large, powerful, and continuous. That matters for draft performance in ways it simply does not in climates where heating systems run seasonally.
What Building Depressurization Is and How the Analysis Works
Building depressurization — a condition where interior air pressure drops below outdoor pressure — is the most commonly overlooked cause of chimney draft failure.
Building depressurization occurs when more air is mechanically exhausted from a building than is allowed back in. In a tight, well-sealed home, it happens quickly and dramatically. In a looser older structure, it happens more slowly and often corrects itself through infiltration. Understanding the difference explains why the same chimney design performs correctly in one house and fails consistently in another built twenty feet away.
What Causes Building Depressurization
Three primary mechanisms create building depressurization in Houston homes.
HVAC System Imbalance
HVAC system imbalance occurs when a forced-air system moves more air out of a zone than it returns. Multi-zone systems — common in larger post-2000 Houston homes — are particularly prone to this. A zone that is partially closed off for temperature control may receive supply air while its return is restricted. The net result is pressure drawn from adjacent spaces, including the firebox.
Range Hood Operation
Range hood operation is frequently the most immediate trigger. A high-CFM range hood exhausting at full draw can remove 300 to 600 cubic feet of air per minute from a sealed home. That volume has to come from somewhere. In a tight home with no dedicated makeup air supply, it comes from every available path — including down the flue.
Construction Tightness
Construction tightness is the condition that makes both of the above problems worse. In a home with a 1.5 ACH50 blower door rating — which is standard for a post-2010 Energy Star-rated build in the Houston metro — the building envelope is essentially competing with the chimney for the same limited air supply. ACH50 refers to air changes per hour at 50 pascals of pressure, the standard measure of how airtight a building is.
The Multi-Condition Testing Protocol
Forensic chimney draft analysis does not test the chimney in isolation. It tests the chimney under the operating conditions that produce the failure.
The protocol involves establishing baseline pressure readings in the firebox and in the adjacent living space before any mechanical systems are activated. Those readings are recorded. Then, conditions are introduced in a structured sequence: HVAC system activated at operating load, range hood brought to operational draw, exhaust fans introduced. Pressure differentials are measured at each condition change and between each combination.
The point is to identify which specific system combination triggers the pressure inversion — the moment when interior pressure drops below flue pressure and draft reverses. That trigger is often a combination of two or three systems, not a single cause. A chimney that drafts normally with the HVAC running may fail the moment the range hood activates. That specificity matters. It is what separates a useful diagnostic finding from a general observation.
What the Instruments Measure and Why Sequence Matters
Three instruments run simultaneously during a live-condition test: a digital draft gauge, which measures pressure differential in pascals across the firebox opening; a smoke pencil, which visualizes airflow direction at the firebox and at key building penetrations; and a carbon monoxide monitor, which confirms whether gases are present in the living space during testing conditions.
Digital Draft Gauge
Measures pressure differential in pascals across the firebox opening.
Smoke Pencil
Visualizes airflow direction at the firebox and key building penetrations.
Carbon Monoxide Monitor
Confirms whether gases are present in the living space during testing.
Critically, these instruments run at the same time. Sequential testing — running each instrument during a separate condition — misses the interaction effects between systems. The pressure inversion that appears only when the HVAC and range hood operate together will not appear in a test where those systems are evaluated separately. Running all three instruments under simultaneous live-building conditions is what captures the real failure mode, not the theoretical one.
The result of the protocol is a written report. It identifies which condition combination triggers the draft failure, quantifies the pressure differential at that trigger point, and points toward the specific correction class — whether that is combustion air supply, draft hood modification, exhaust fan interlock, or pressure equalization — that addresses the confirmed cause.
Three Draft Failure Situations We See Repeatedly in Greater Houston
Building pressure draft failures appear in patterns — and Houston's building stock produces three of them reliably.
Post-2000 suburban homes with multi-zone HVAC and a single masonry fireplace.
This is the scenario most commonly diagnosed in Fulshear, Cinco Ranch, and Sienna Plantation. The fireplace was included as an architectural feature, not a primary heat source. It operates a few times per year. The HVAC system is oversized relative to the firebox's makeup air needs. Every time the fireplace is used in winter, the system is running at full load — and the building depressurizes within minutes of lighting a fire. The chimney was built correctly. The HVAC was installed correctly. The problem exists only in the interaction between them.
Older Heights or Montrose-area homes that have been tightened through renovation.
A 1940s bungalow with original windows, gaps around penetrations, and intermittent HVAC typically drafts a wood-burning fireplace without issue. The same home, after a full renovation with spray foam insulation and a new high-efficiency HVAC system, often fails immediately. The chimney has not changed. The building's pressure dynamics have changed completely. We have diagnosed this scenario in multiple homes in the Heights corridor where extensive renovation preceded the first complaint.
Large-format residential spaces with high-output range hoods.
Kitchen-adjacent fireplaces in custom homes or open-plan renovations in Tanglewood and the Energy Corridor frequently fail when cooking is happening simultaneously with fireplace use. The range hood is the primary pressure culprit, and the correct fix — a dedicated makeup air system interlocked with the hood — requires a diagnostic finding to justify it.
What Fourteen Years of Forensic Draft Investigations Has Taught Us
Most persistent draft failures have a single identifiable trigger — and that trigger almost always involves a system that was not running during the previous diagnostic visit.
I've been walking through these homes since 2010, and the pattern I encounter most often is a homeowner who has had the chimney inspected correctly, swept correctly, and pronounced structurally sound — and still has smoke in the room.
The first thing I establish on arrival is what conditions were present during the failed diagnostic visit. Was the HVAC running? Was anyone in the kitchen? Were other exhaust fans active? Almost without exception, the previous inspection was done in static conditions — HVAC off, hood off, windows closed. That is the correct way to inspect a chimney's physical condition. It is the wrong way to test a chimney's pressure performance.
What changed my approach early on was a job in Katy — post-2000 construction, three-zone HVAC, structurally perfect chimney. Three separate visits had confirmed it clean and functional. We ran our baseline test and confirmed it was drafting fine. Then we turned on the HVAC. Pressure dropped four pascals in ninety seconds. Turned on the range hood. Negative seven pascals at the firebox opening. Smoke pencil confirmed complete reversal. The cause was documented in a single visit. The correction — a passive combustion air duct with a barometric damper — resolved it.
The answer was always in the building. We just had to run the building to find it.
— 832 Home Service, Houston, TX
Your Chimney Has Been Inspected and Cleaned — and It Still Smokes
Forensic draft analysis is the appropriate next step when structural inspection has confirmed the chimney is sound but draft failure continues.
Start Here First
Here is the decision framework. If the chimney has not been inspected, schedule a standard inspection first. There are physical causes — cap restriction, liner damage, flue blockage — that need to be ruled out before pressure analysis begins. A Tier 1 or Tier 2 inspection handles that.
If the chimney has been inspected and cleared, and the problem continues, the question shifts. You are no longer looking for a structural defect. You are looking for a performance condition that only appears under specific operational loads. That requires a different tool.
Forensic chimney draft analysis is appropriate when:
- ✓ A clean structural inspection did not resolve the smoke spillage
- ✓ The problem is intermittent — better on some days, worse on others — which is consistent with pressure-driven failure
- ✓ The issue worsened after a home renovation, HVAC replacement, or kitchen upgrade
- ✓ The chimney performs differently with windows open versus sealed
Any one of these conditions points toward a pressure cause. All four together make it nearly certain. A written diagnostic report following the multi-condition protocol will confirm the finding and identify the correction that addresses it.
Areas We Serve
832 Home Service conducts forensic chimney draft analysis across the greater Houston area.
Frequently Asked Questions
My chimney passed inspection but still smokes. What is happening?
A structurally sound chimney can still fail to draft. The problem is usually a failure of the building's pressure relationship with the chimney, not the chimney's physical condition. Standard inspection documents condition; it does not measure pressure differentials under real operating loads. Forensic chimney draft analysis fills that gap.
What is building depressurization?
Building depressurization is a condition where interior air pressure drops below outdoor pressure. It occurs when more air is mechanically exhausted from a building than is allowed back in. In tight, well-sealed Houston homes it happens quickly and dramatically, and it is the most commonly overlooked cause of chimney draft failure.
Why does newer Houston construction cause draft problems?
Post-2000 homes in communities like Fulshear, Cinco Ranch, and Sienna Plantation use spray foam insulation, vapor barriers, and sealed envelopes. Those gaps that once let makeup air in are largely sealed. When the fireplace operates alongside a multi-zone HVAC system, the building depressurizes and the chimney loses its pressure advantage.
How is a forensic draft analysis different from a standard inspection?
A standard inspection is performed in static conditions with the HVAC off, the range hood off, and windows closed. Forensic draft analysis tests the chimney under live-building conditions, activating the HVAC, range hood, and exhaust fans in sequence while three instruments run simultaneously to capture the real failure mode.
What do I receive at the end of the analysis?
A written report. It identifies which condition combination triggers the draft failure, quantifies the pressure differential at that trigger point, and points toward the specific correction class — combustion air supply, draft hood modification, exhaust fan interlock, or pressure equalization — that addresses the confirmed cause.
Should I get an inspection before a draft analysis?
Yes, if the chimney has not been inspected yet. Physical causes like cap restriction, liner damage, or flue blockage should be ruled out first with a Tier 1 or Tier 2 inspection. If the chimney has already been inspected and cleared and still fails to draft, forensic draft analysis is the appropriate next step.
